When you’re picking the right ball valve for your piping system, there’s one question that always pops up first: flanged or threaded? It might sound simple, but trust me, this choice can seriously impact your installation, maintenance, safety, and overall budget.
Let me walk you through it step-by-step, like I would if we were sitting down for coffee and chatting valves.

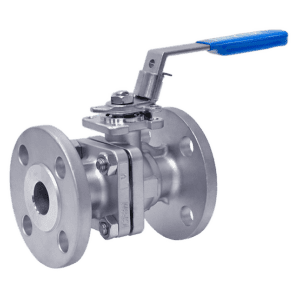

A flanged ball valve has bolted flanges at both ends and connects to the piping system using matching flanges and gaskets. It’s solid, secure, and designed to handle pressure like a champ.
Materials you’ll commonly see:
Easy to install and remove without cutting the pipe
Perfect for high-pressure, high-temperature applications
Leak-tight when bolted and gasketed properly
Long-term durability with minimal leakage risks
Higher cost (both valve and installation)
More space required due to bolt holes and flanges
Heavier, which may need extra support
A threaded ball valve connects directly to threaded pipes. NPT and BSP are the most common thread standards.
Think of it like screwing in a lightbulb — quick, compact, and efficient.
Low cost and faster installation
Compact design, ideal for tight spots
No gaskets needed in most cases
Easy to replace with basic tools
Weaker sealing than flanges at high pressure
Prone to thread damage if over-tightened
Not ideal for frequent maintenance
Before we dive into the details, here’s a quick summary table to help you see the key differences at a glance:
| Feature | Flanged Ball Valve | Threaded Ball Valve |
| Connection Type | Bolted flanges with gasket | Screw-in threads (NPT/BSP) |
| Pressure Handling | High-pressure & high-temperature systems | Low to moderate pressure |
| Installation | Requires alignment, bolts, and gaskets | Quick install with basic tools |
| Maintenance | Easy disassembly for repair | May require pipe cutting for replacement |
| Space Requirement | Needs more space & support | Compact and lightweight |
| Cost | Higher initial and labour cost | Lower upfront cost |
| Common Applications | Oil & gas, chemical, steam pipelines | Water, HVAC, residential plumbing |
| Durability | Long-lasting, suited for critical systems | Suitable for non-critical, budget systems |
| Safety | Blowout-proof, better for hazardous fluids | Risk of loosening under vibration |
Now let’s break this down further so you can see how each factor plays out in real-world settings.
Flanged valves use bolted flange faces with gaskets, ensuring a secure and leak-tight seal. They follow dimensional standards like ANSI B16.5 or ASME guidelines for consistency.
Threaded valves have NPT or BSP threads machined into the ends. These create pressure seals without gaskets, ideal for basic, small-scale systems.
Flanged valves are your go-to for high-pressure or high-temperature systems (think steam, chemicals, oil & gas).
Threaded valves are better suited for low to moderate pressures like water lines, HVAC, or compressed air.
Example: I once worked with a food processing plant where the cleaning-in-place system ran at 10 bar steam pressure. We swapped out corroded threaded valves for flanged stainless steel ball valves. No more leaks, and zero downtime after that.
Flanged valves require precise alignment, gaskets, torque-controlled bolts, and more clearance space. However, they are easier to remove for maintenance.
Threaded valves can be installed with basic tools, no alignment needed. But over-tightening or cross-threading is a real risk.
Flanged connections allow disassembly without cutting pipes, making them ideal for systems that require regular maintenance.
Threaded valves are harder to maintain in place. If threads seize or corrode, you may need to cut the line to replace them.
Flanged valves are larger and heavier. You’ll need more room for tools and access during installation.
Threaded valves are compact and lightweight, making them ideal for tight mechanical rooms or skids.
Flanged ball valves are more expensive up front. You’ll pay more for the valve, flanges, gaskets, and labour. But they offer better long-term value in high-pressure or hazardous systems. They’re easier to remove for maintenance, and their durability reduces downtime and replacement frequency.
Threaded ball valves, on the other hand, are cheaper and quicker to install. They’re ideal for low-pressure, non-critical systems where budget and speed matter most. But in the long run, thread damage or leaks can lead to higher maintenance costs and more frequent replacements.
Flanged Ball Valves:
Threaded Ball Valves:
Flanged valves often adhere to international piping standards, ensuring compatibility across systems.
Threaded valves may vary based on regional thread types (e.g., NPT in North America, BSP in Europe/Asia).
Flanged connections reduce risk of blowouts in hazardous environments due to their mechanical strength.
Threaded connections can loosen over time under vibration or thermal expansion, increasing leak risk.
Here’s my take – it depends on your application, but:
Go with a flanged ball valve if your application involves high pressure, hazardous fluids, or you expect regular disassembly for inspection or maintenance. The robust connection, longer service life, and lower leak risk make it ideal for critical piping layouts like in chemical plants, power stations, or oil pipelines.
Opt for a threaded valve if you’re working on a cost-sensitive project, especially in tight spaces or small-scale systems. They’re faster to install, great for low-pressure utilities, and perfect for jobs where you’re not expecting to pull the valve out often.
In short: if reliability and safety are non-negotiable, go flanged. If it’s about speed, budget, and simplicity, threaded could be the better fit. It’s a classic cost-performance trade-off — so choose the one that matches your priorities.
If you’ve made it this far, chances are you’re either planning a project or in the middle of solving a piping headache. Either way, remember this:
Flanged ball valves are built for strength. Threaded ones are built for speed.
Choose the one that fits your system, pressure, space, and budget needs best. And when in doubt, talk to an expert. It can save you time, money, and a world of rework.
